Cobra Flush Master Toilet Flush Valve

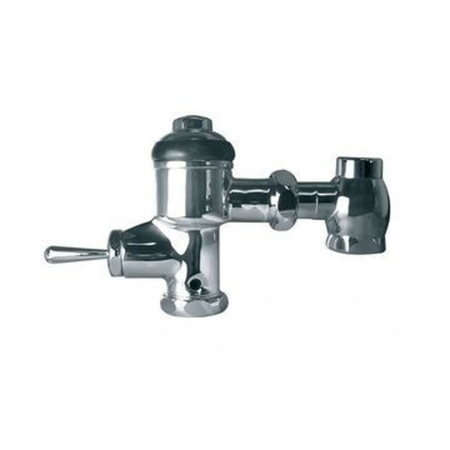

VALVE ONLY : FM1-000/N Range: Flush Master Description: Exposed. Non-hold open feature. With wall flange, integral vacuum breaker, and control stop with integral non-return valve inlet. Adjustable control stop to valve connection 108mm t0 140mm. 1 1/4BSP female iron connection end. Recommended optimum design pressures: inlet flow pressure 30 - 300kPa for back entry WC pans: Maximum system pressure 600kPa. Product Code: FM1-000/N ERP Code: FFUUSTFM-0GT01 Barcode: 6002194021209 LowPressure, DZR Brass, 2 Year Warranty, JaswicApproved Dimensions: (l) 310mm x (w) 210mm x (h) 80mm Package Weight: 2.54

COMPLETE BACK ENTRY : FM1-100/N With bent flushpipe and rubber pan connector. 1 1/4BSP female iron connection end. Recommended optimum design pressures: inlet flow pressure 30 - 300kPa for back entry WC pans: Maximum system pressure 600kPa. Product Code: FM1-100/N ERP Code: FFU1STFM-0GT01 Barcode: 6002194018599 LowPressure, DZR Brass, 2 Year Warranty, JaswicApproved Dimensions: (l) 400mm x (w) 230mm x (h) 80mm Package Weight: 3

COMPLETE TOP ENTRY : FM1-210/N With straight flushpipe and compression pan connector. 1 1/4BSP female iron connection end. Recommended optimum design pressures: inlet flow pressure 30 - 300kPa for top entry WC pans: Maximum system pressure 600kPa. Product Code: FM1-210/N ERP Code: FFU2STFM-0GT01 Barcode: 6002194018667 LowPressure, DZR Brass, 2 Year Warranty, JaswicApproved Dimensions: (l) 480mm x (w) 250mm x (h) 80mm Package Weight: 3.34
