GALVANISED LONG SCREW COMPLETE 50mm
SKU 66-CT-50GLS
Request a quote
1
Product Details
Brand: ARKAM PLUMBING
Weight: 0.91 kg
Features:
Hot dipped malleable iron fitting are each individually pressure testes to ensure pin hole free quality. Each fitting is coated with a light oil to prevent corrosion on the threads which conforms to ISO 7-1 (BSP Standard) and ensure a perfect seal for the fittings lifetime.
Technical Data:
Maximum Pressure: 16 BAR (230PSI) (1.6MPA)
Maximum Temperature: 200°C (392°F)
Tensile Strength: 330MPA
Hardness: HB150 (Brinell)
Elongation Rate: 8%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Hot Dipped Malleable Iron

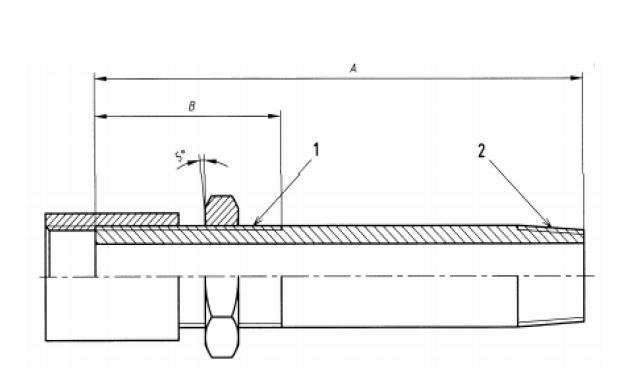

Dimensions Table
Item Code
BSP
METRIC mm
A
66-CT-15GLS
1/2"
15mm
100mm
66-CT-20GLS
3/4"
20mm
100mm
66-CT-25GLS
1"
25mm
100mm
66-CT-32GLS
1 1/4"
32mm
150mm
66-CT-40GLS
1 1/2"
40mm
150mm
66-CT-50GLS
2"
50mm
150mm
| Item Code | BSP | METRIC mm | A |
|---|---|---|---|
|
66-CT-15GLS |
1/2" | 15mm | 100mm |
|
66-CT-20GLS |
3/4" | 20mm | 100mm |
|
66-CT-25GLS |
1" | 25mm | 100mm |
|
66-CT-32GLS |
1 1/4" | 32mm | 150mm |
|
66-CT-40GLS |
1 1/2" | 40mm | 150mm |
|
66-CT-50GLS |
2" | 50mm | 150mm |
