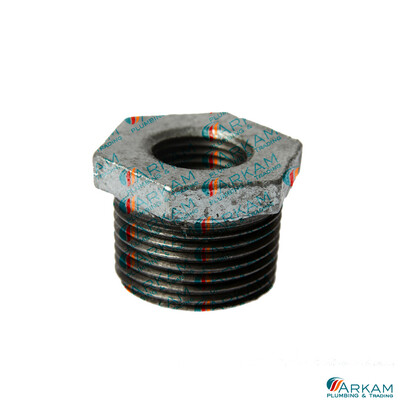

GALVANISED SWAGE NIPPLE (ADAPTOR) 32mm
SKU 66-CT-32GSN
Request a quote
1
Product Details
Brand: ARKAM PLUMBING
Weight: 0.19 kg
Features:
Hot dipped malleable iron fitting are each individually pressure testes to ensure pin hole free quality. Each fitting is coated with a light oil to prevent corrosion on the threads which conforms to ISO 7-1 (BSP Standard) and ensure a perfect seal for the fittings lifetime.
Technical Data:
Maximum Pressure: 16 BAR (230PSI) (1.6MPA)
Maximum Temperature: 200°C (392°F)
Tensile Strength: 330MPA
Hardness: HB150 (Brinell)
Elongation Rate: 8%
Suitable Applications: Water, Oil, Gas, Petro-Chemical
Material: Hot Dipped Malleable Iron
Dimensions Table
| ITEM CODE | BSP | METRIC mm | A | B | C | D | E | THICKNESS | WIDTH OF HOSE TOOTH | QTY OF HOSE TOOTH |
|---|---|---|---|---|---|---|---|---|---|---|
|
66-CT-15GS |
1/2" | 15mm | 76 | 38 | 16 | 11 | 15 | 2.5 | 5 | 6 |
|
66-CT-20GSN |
3/4" | 20mm | 82 | 40 | 19.5 | 14.5 | 17 | 2.5 | 5 | 7 |
|
66-CT-25GSN |
1" | 25mm | 85 | 45 | 26 | 20 | 19 | 3 | 5 | 8 |
|
66-CT-32GSN |
1 1/4" | 32mm | 93 | 50 | 32.5 | 26.5 | 21 | 3 | 5 | 9 |
|
66-CT-40GSN |
1 1/2" | 40mm | 100 | 55 | 39 | 32.5 | 22 | 3.25 | 7 | 6 |
|
66-CT-50GSN |
2" | 50mm | 115 | 55 | 51.5 | 45 | 25 | 3.25 | 7 | 7 |
